ManCave Modeler presents...
Panzerkampfwagen VI Tiger Ausf. E
Sd.Kfz.181
(Early Production)

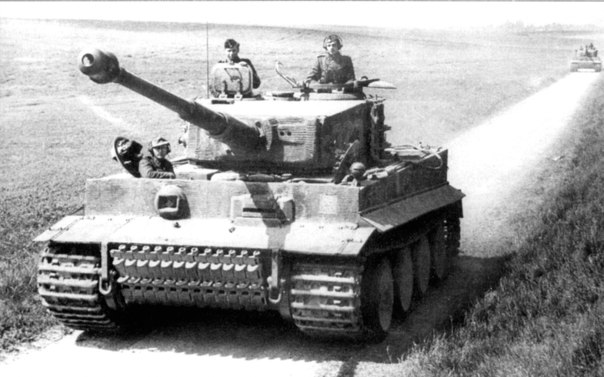

Deployed beginning in 1942 the legendary Tiger Tank struck fear into those who fought against it.

The Tiger I was the first vehicle that mounted the 8.8 cm KwK 36 gun. While considered an outstanding design, it was over-engineered using expensive materials and labor-intensive production methods. Limited by it's short range and high fuel consumption, the Tiger was also prone to track failures, often involving mud, ice and snow or some other debris in it's overlapping, interleaved road wheels.

Tiger I Ausf E Specifications
Weight 57 tons
Crew 5
Primary Armament 88 mm KwK 36 L/56,
92 AP and HE rounds
Range 1800-2100 m
Secondary Amament 2x 7.92 mm MG 34/42,
4800 rounds
Armor thickness 15 mm – 100 mm
Propulsion V12 Maybach HL230 P45 gasoline, 690 hp (515 kW)
7-forward/1-reverse transmission
Max Road Speed 45 km/h (28 mph)
Max Range 125 km (78 miles)

This page still under construction




An excellent website for information on The Tiger I tank
http://www.alanhamby.com

Products used in construction
Friulmodel Tracks
Tiger I Early Track Set
